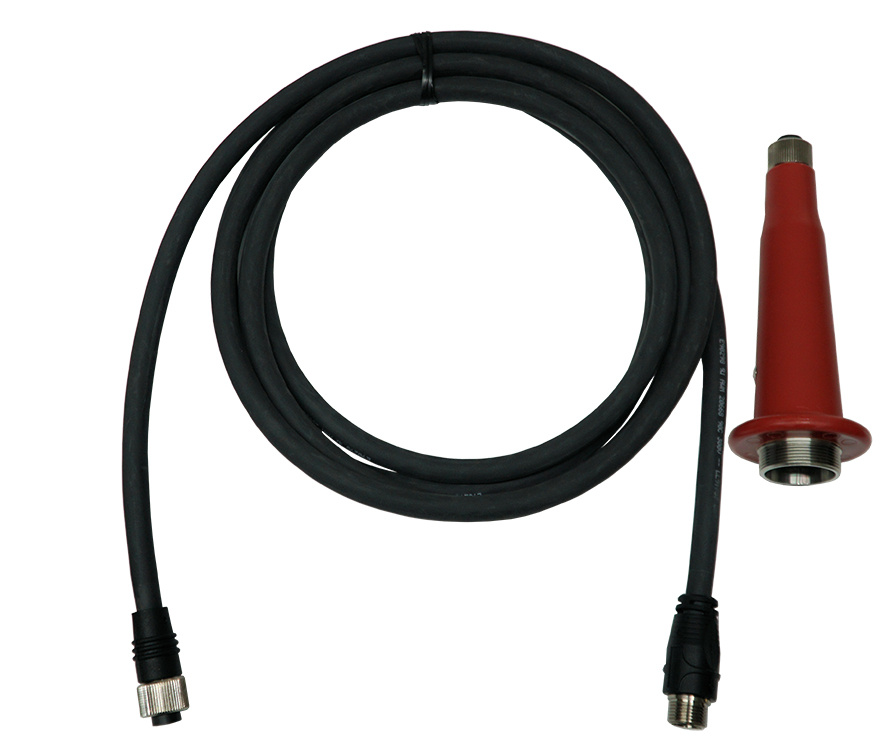

Quick-Release Hose, Wiring and Handle Assembly
<p>URE6102 POL6102 URA6102 694687006082 sku 6102 UR6102 POL6102 URT6102 URT-6102 PLY6102 POL 6102 US-6102 PV6102 UPC694687006082 URE-6102 PLV6102 PLV-6102</p>
Part No.:6102
Weight: 1.50 LB
Length: 10.00 IN
Height: 14.00 IN
Width: 2.00 IN
UPC: 694687006082
Accepted Payments:
Visa, MC, American Express, Discover, PayPal
This item has been discountinued. You cannot order this product. This item is no longer available. This item is presented for historical information purposes and technical support purposes only.
IMPORTANT NOTE: This item has been DISCONTINUED. You will need to upgrade your welder to the improved hose, wiring, and handle assembly.
Polyvance's 6102 modular hose and wiring assembly was introduced on Polyvance's 8000-series nitrogen plastic welders. Older model nitrogen plastic welders may be upgraded to this modular hose and wiring assembly. This will allow older welders to have the convenience of hose replacement WITHOUT having to get inside the welder box.
How to Install the 6102 Hose and Handle Assembly (Click or tap to expand)
Please follow these steps carefully to attach the 6102 modular hose and wiring assembly to any of our 8000 series welders:
Attach the hose with the threaded collar at the end to the welder by carefully lining up the notches in each part. Turn the threaded collar to pull the connector in. Don’t push the connector in because the pins are easily damaged.
Attach the other end of the hose to the bottom of the handle. Line up the notches and turn the threaded collar to connect the hose and handle. DO NOT TWIST THE HANDLE! This will damage the pins in the socket. Sheared & twisted pins are NOT covered by warranty.
Informational Video (Click or tap to expand)
IMPORTANT NOTE: If you are retrofitting an older welder that does NOT have this modular hose and wiring assembly, you will need to purchase the following parts in addition to this hose and wiring assembly. The additional parts you will need are listed below.
Additional parts you will need if you are retrofitting an older welder:
| Image | Part No. | Part No. & Description | Link |
|---|---|---|---|
 |
1 | 6086-04 - Straight 1/8" NPT x 4mm tube connector. |  |
 |
1 | 6102-03 - Bulkhead Connector | |
 |
1 | 6057-13 - 1/8"F NPT to 1/4" tube fitting | |
