Part No.:2510
Weight: 6.75 FL OZ
Length: 8.00 IN
Height: 3.25 IN
Width: 1.50 IN
UPC: 694687004828
Also available on Amazon:
Accepted Payments:
IMPORTANT NOTE: Due to hazmat restrictions, we cannot ship this item overseas.

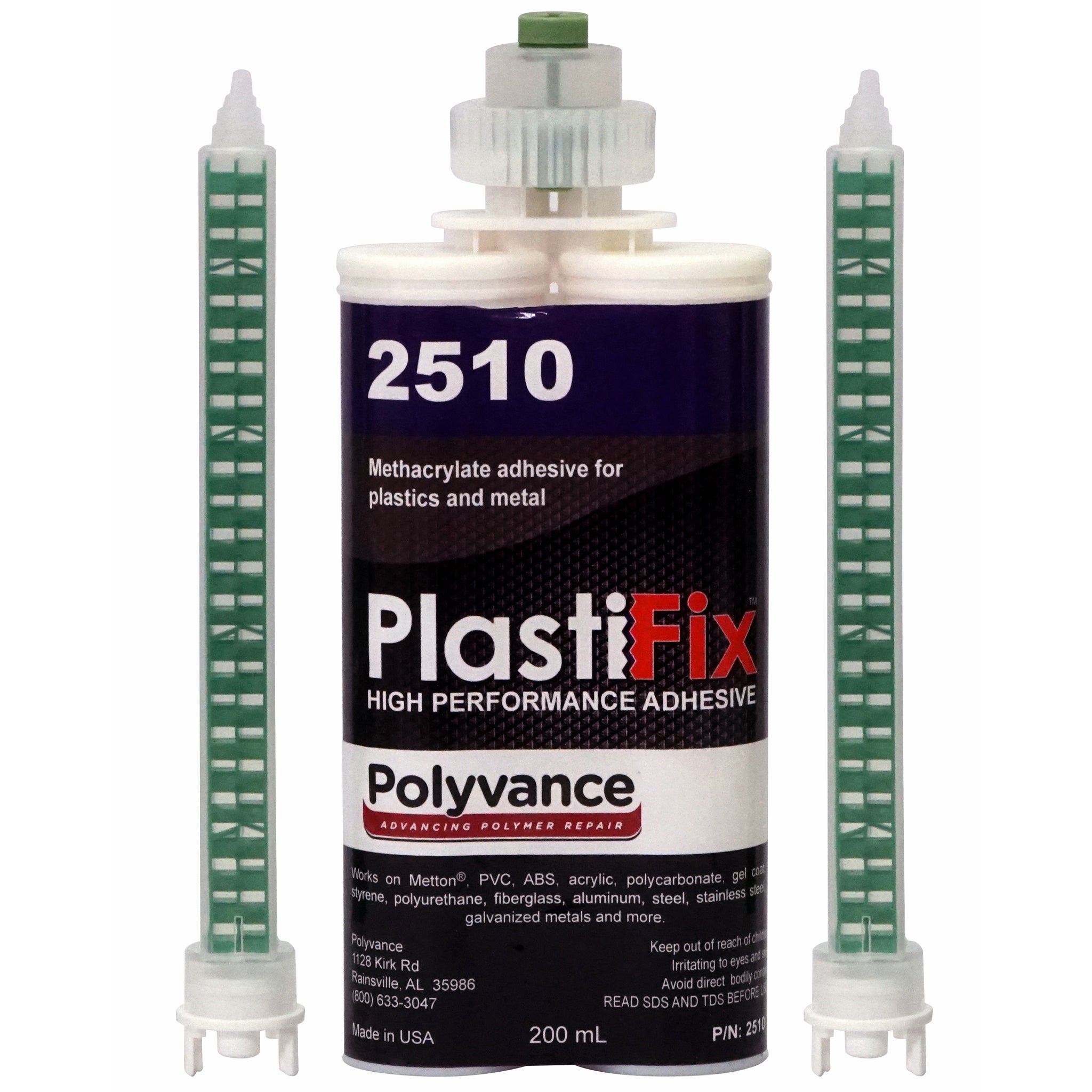

2510 PlastiFix High-Performance Adhesive is a two-component, 100% reactive structural methacrylate adhesive specifically formulated for bonding thermoplastics, thermosets, metals, and composite assemblies. This kit comes with two (2) mixer tips.
Features:
Applications:
Adhesive Properties:
Adhesive | Activator | |
---|---|---|
State of Matter | Viscous Liquid | Viscous Liquid |
Appearance | Off-White | Amber |
Viscosity at 25°C (77°F) | 80,000 - 85000 cps | 80,000 - 85000 cps |
Flash Point (TCC) | 51°F (11°C) | 51°F (11°C) |
Density (lbs/gal) | 8.07 | 8.05 |
Mix Ratio (Weight & volume) | 1 | 1 |
Cure Characteristics:
Mixed Viscosity | 280,000 - 320,000 cps |
Mixed Density | 8.06 |
Working Time | 10 - 12 minutes |
Fixture Time | 18 - 22 minutes |
Funtional Cure | 2 - 4 hours |
Coverage/lb | 147 sq. in @ 0.010" |
Service Temperature | -40°F to 250°F (-40°C - 121°C) |
Assembly Time | 22 minutes @ 77°F |
Cured Adhesive Properties:
Standard | ||
Gap Filling | 0.125+ inches | |
Shore Hardness | 66 D | ASTM D 2240 |
Elongation Before Break | 18% | |
Tensile Strength Shear | 3,000 psi | DIN 53283 |
Peeling Strength | 18-20 pli (pounds per linear inch) | |
Adhesive Tensile Shear (Steel/Steel) | 4,200 psi | ASTM D 1002 |
Adhesive Tensile Shear (Al/Al) | >3,600 psi | |
Adhesive Tensile Shear (Fiberglass/Fiberglass) | Stock Failure | |
Adhesive Tensile Shear (ABS/PVC) | Stock Failure | |
Adhesive Tensile Shear (SMC/SMC) | Stock Failure | |
Impact Resistance | 18 ft.lb./in |
Application Instructions:
Important Note:
You will need an applicator gun to dispense this adhesive. We have one available from the link below.
Packaging
2510 PlastiFix is available in 200ml cartridges only.
Precautions:
This product and the auxiliary materials normally combined with it are capable of producing adverse health effects ranging from minor skin irritation to serious systemic effects. None of these materials should be used, stored, or transported until the handling precautions and recommendations, as stated in the Safety Data Sheets (SDS) for this and all other products being used, are understood by all people who will work with the product.
WARRANTY:
Polyvance warrants only that its product will meet those specifications designated as such herein. All information supplied by Polyvance is considered accurate, but the warranty is dependant upon the express condition that the customer shall make his/her own assessment to determine the product’s suitability for a particular purpose. Polyvance makes no other warranty, either express or implied, including those regarding such other information, the data upon which the same is based, or the results to be obtained from the use thereof; that any product shall be merchantable or fit for any particular purpose; or that the use of such other information or product will not infringe any patent.
