Nitrocell Tire Adapter Kit

Nitrocell Tire Adapter Kit

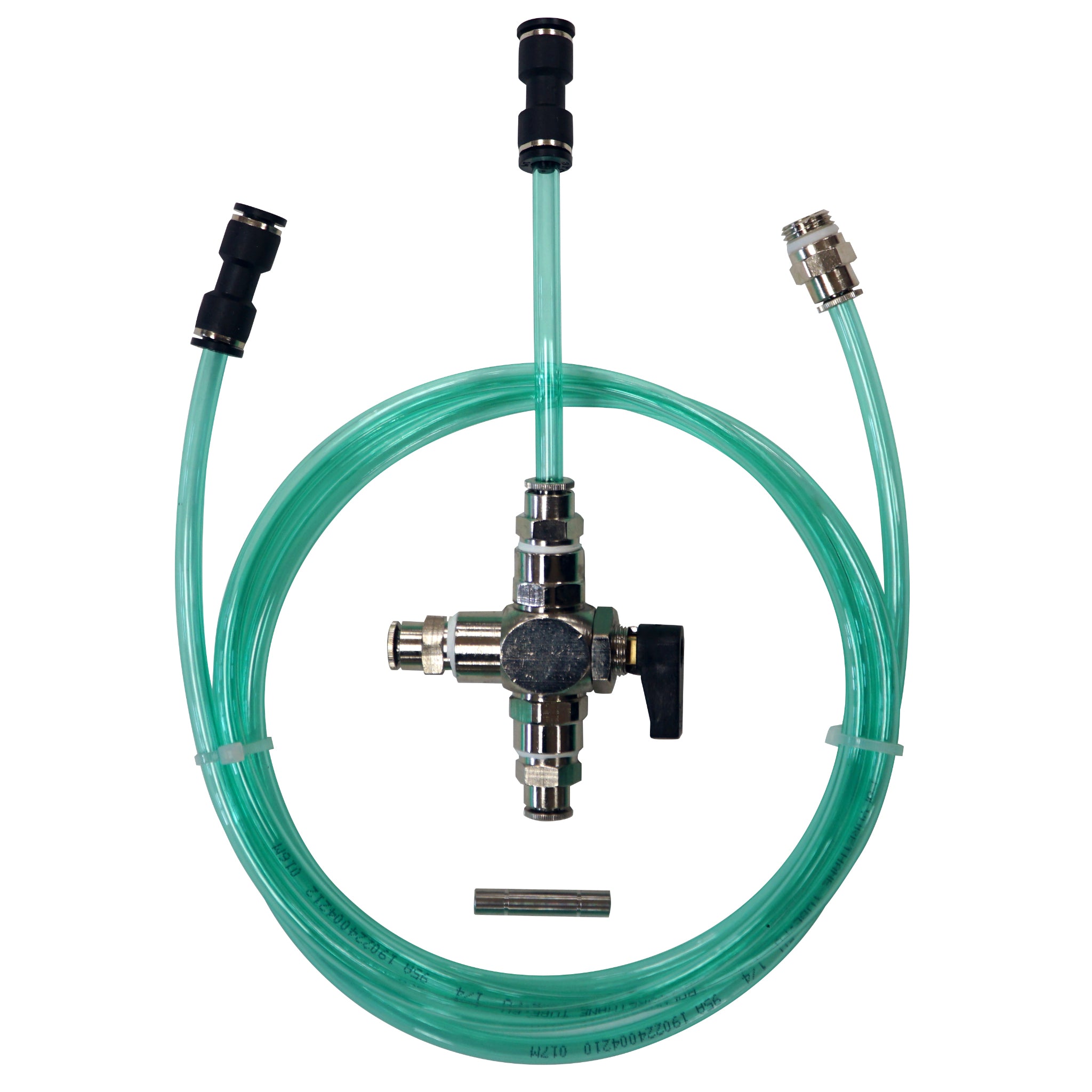

The Nitrocell Tire Adapter Kit allows Nitrocell nitrogen generator owners to fill an auxiliary air tank with nitrogen to fill car tires. The kit includes the required valve, tubing, restrictor, and fittings needed to divert nitrogen into a storage tank.

Why Choose the Nitrocell Tire Adapter Kit?

• Complete Adapter Kit: Includes valve, tubing, restrictor, and fittings to connect a nitrogen generator to an auxiliary storage tank
• Expanded Functionality: Enables your nitrogen generator to fill tires when the plastic welder is not in use
• Easy Installation: Simple setup with minimal tools, compatible with any nitrogen generator using a 1/4" hose
• Low Maintenance: Designed for long-term use with virtually no upkeep required
• Cost-Effective Add-On: Maximizes the value of your nitrogen generator by expanding its functionality

Why fill tires with nitrogen?

Polyvance's nitrogen generator produces nitrogen gas that is 97% to 98% pure. Using dry nitrogen helps maintain more consistent tire pressure and reduces the risk of rim corrosion or rust by eliminating oxygen and water vapor from the air.

Installation

1. Locate the nitrogen line connecting the nitrogen generator to the plastic welder.
2. Using a sharp knife or scissors, carefully cut the tubing somewhere convenient between the generator and the welder. Make sure the cut is square to ensure a leak free fit.
3. Push the tube coming from the generator into the BOTTOM of the “T” valve and opposite the valve handle.
4. Push the tube coming from the welder into the side of the “T” valve.
5. Insert the restrictor into the straight fitting on the hose attached to the valve and into the fitting on the supplied hose.
6. Install your shop’s MALE quick-connect air fitting (with female threads) (not included) onto the 1/4” threaded tube fitting on the end of the hose. This will be used to plug into your auxiliary air tank.

Use

1. With your shop air connected to the generator and your plastic welder OFF and COLD, turn the handle on the gray “T” valve so nitrogen flows to your quick-connect fitting.
2. Plug the fitting into your tank and allow the tank to fill.
   NOTE: This will take some time, as the restrictor prevents nitrogen from free-flowing into the tank. Without the restrictor, the purity of the nitrogen would be only marginally better than shop air, so under no circumstances should you remove, modify, or bypass the restrictor!
3. When the auxiliary tank is full, turn the valve so nitrogen flows to the welder. Disconnect the hose from the auxiliary tank and use the nitrogen in the tank as needed.

Product Specifications

N2 Flow @ 105 psi

Inlet Pressure: 20 L/Min 97% pure

Air Requirement: 6.9 - 10.3 bar (100 - 150 psi) Air must be clean and dry.

Electrical: none
