KC Welder Pro - 230V Euro
$82.95
Part No.:KCWPRO 230V
Weight: 1.35 LB
Length: 16.50 IN
Height: 2.75 IN
Width: 4.50 IN
Accepted Payments:
Visa, MC, American Express, Discover, PayPal
IMPORTANT NOTE: This welder is intended for EUROPE and has a European plug and needs 220 volts. If you are in North America, you need the 120 volt version of the KCWPRO.
With the Kayak and Canoe "KC" Welder Pro, you can create permanent repairs to your cracked kayak or cracked canoe. This repair kit comes with everything you need to make a quality weld.
After you add the KC Welder Pro to your cart, you will be asked to select the type of plastic and the color. Available plastic types: LDPE (low density polyethylene) and HDPE (high density polyethylene). Available colors: black, blue, green, natural (no pigment added), orange, red, tan, and yellow.

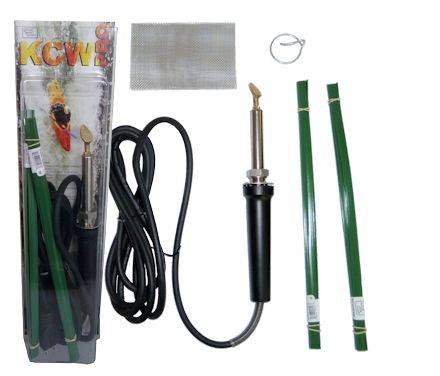

Included Contents (Click or tap to expand)
| Image | Description |
|---|---|
 |
6012-EUR - 200 watt ceramic core welder with European plug, 220-240V |
 |
6031 - flat teardrop shaped welding tip |
 |
10 feet of flat welding ribbon in the plastic type and color you choose. Available plastic types: LDPE (low density polyethylene) and HDPE (high density polyethylene) Available colors: black, blue, green, natural (no pigment added), orange, red, tan, and yellow |
 |
2045W - 10 inch (25cm) by 5 inch (12 cm) stainless steel reinforcing wire mesh |
 |
Welder stand |
LDPE or HDPE? (Click or tap to expand)
The difference between LDPE (low density polyethylene) and HDPE (high density polyethylene) is the length of the molecule chains. HDPE has longer molecular chains than LDPE and the melting temperature of HDPE is often higher than that of LDPE.
LDPE's lower melting temperature usually makes using it as filler rod easier-to-use than welding HDPE filler rod to HDPE plastics.
HDPE is also "tougher" and more abrasion resistant than LDPE, but the practical difference is minimal when doing repair work. If you need the best wear characteristics and can live with making slower, more difficult welds, use HDPE rod. In most cases, we see better quality welds when using LDPE rod for typical crack or hole repair on boat hulls and ATV plastics.
Instructional Video (Click or tap to expand)
Quit Making Temporary Repairs!
You may have seen some creative DIY kayak repair methods. These methods are flawed and the repairs do not last. For example:
- Liquid Nails - it peels off quickly
- Glue gun - it doesn't "burn in" well and quickly peels away
- Riveting an aluminum plate and caulking the edge - it gets scraped off going over rocks
The KC Welder Pro allows you to make permanent repairs.
Step-by-Step Instructions
NOTE:
If you can access the inside of the kayak, you will weld both the inside and outside of the kayak. If you cannot access the inside, you will do a repair only on the outside. This SOP will assume you cannot access the inside. The airless fusion welding process is the same regardless.STEP 1
Clean the kayak. Spray 1001-4 EcoPrep or 1000 Super Prep Plastic Cleaner and wipe dry with a clean, lint-free towel. Make sure the surface is completely dry before continuing.
STEP 2
On the outside of the kayak, use a die grinder or Dremel® tool to expose the raw plastic around the crack, about half an inch on all sides.
STEP 3
Select the welding rod that matches your kayak plastic. (Use R04 or R12 rod for polyethylene kayaks. R04 rod is recommended because it melts easier.)
STEP 4
Use the sharp edge of the welder tip to melt a 1-to-2-inch groove in the plastic along the crack, and then push the displaced plastic back into the groove. Smooth the plastic using the tip of the welder.
Note: The key to this type of repair is to only work in small 1-to-2 inch sections at a time. Don't try to prepare and weld too large of an area at one time, because you won't be able to maintain heat to the substrate.
Continue this process along the entire crack.
STEP 5
Cut a piece of stainless steel wire mesh to fit the prepped area.
STEP 6
Place the mesh onto the plastic and bend it to shape if necessary. Lay the welder tip on top of the mesh to melt the plastic underneath. Once the plastic is melted, use a metal tool to push the mesh deep into the melted plastic. Work in small sections at a time.
Continue working a little at a time until the mesh is fully embedded in the plastic.
STEP 7
Use the welder’s tip to re-melt the plastic while simultaneously melting the filler rod on the barrel of the welder.
Melt both sides of the filler rod and stick it ontop of the melted area. Mix the filler rod and the melted plastic together.
Continue working a little at a time until the mesh is completely covered and the filler rod is thoroughly mixed with the base material.
STEP 8
The weld is complete. Allow the weld to cool completely before handling.
