Hose & Wiring Assembly
Part No.:6100HW
Weight: 2.00 LB
Length: 14.00 IN
Height: 3.00 IN
Width: 10.00 IN
UPC: 694687005542
Accepted Payments:
This item has been discountinued. You cannot order this product. This item is no longer available. This item is presented for historical information purposes and technical support purposes only.

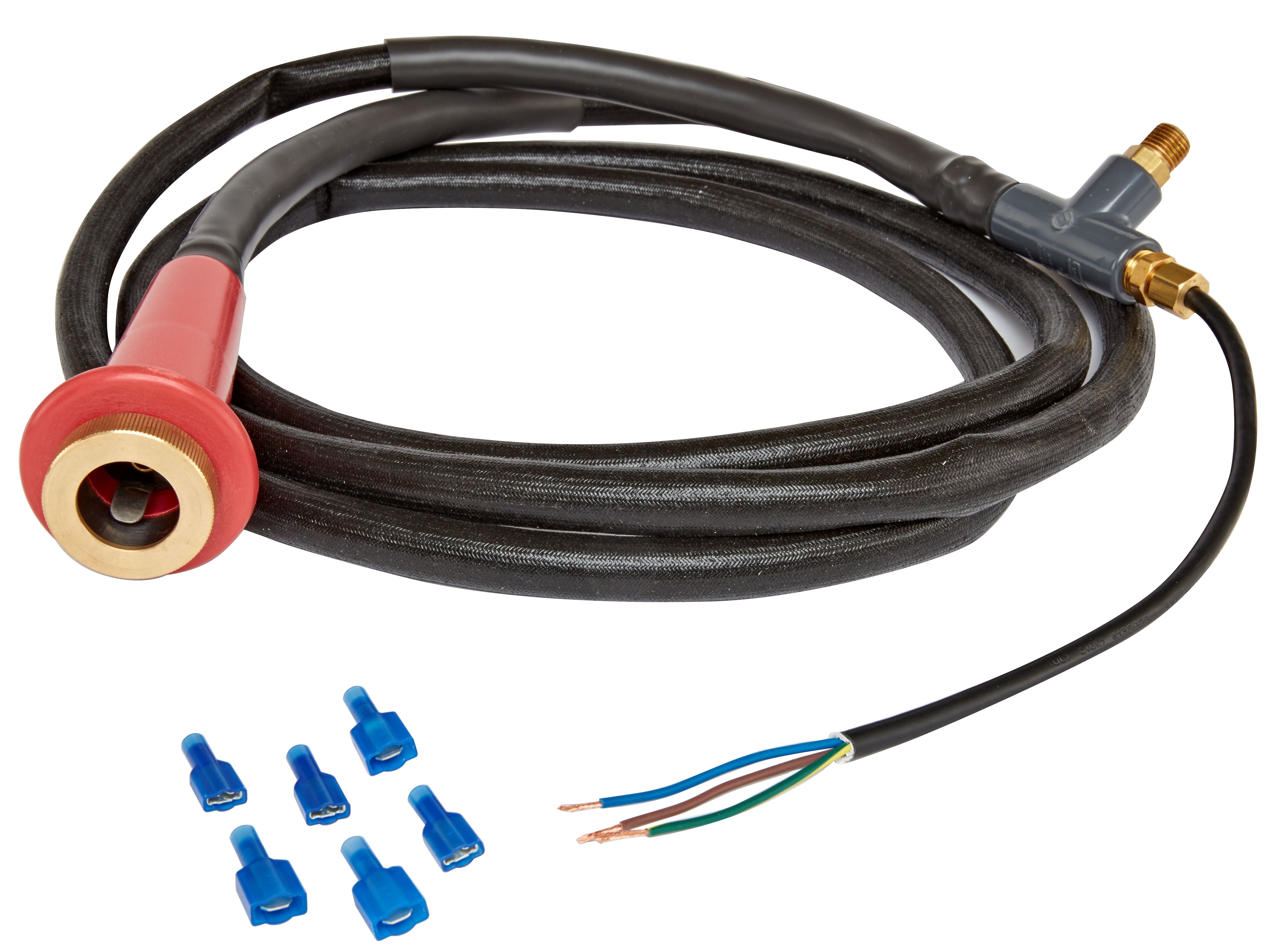

Hose and Wiring Assembly
This hose and wiring assembly features an improved, melt-proof, silicone hose that replaces the older, braided silicone hose, and the really old blue vinyl hose that was prone to get melted accidentally.

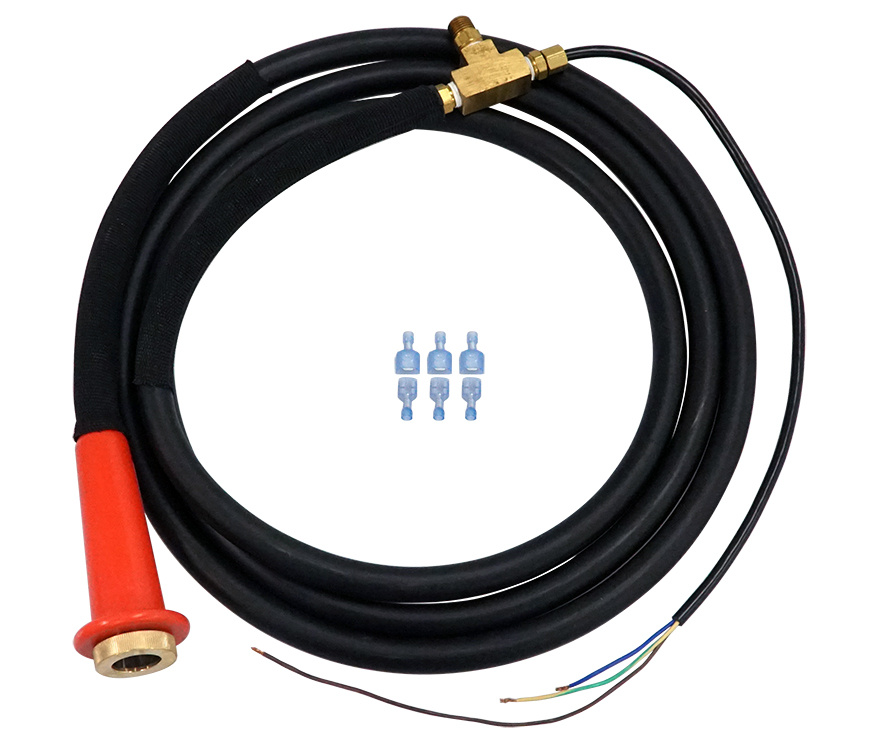

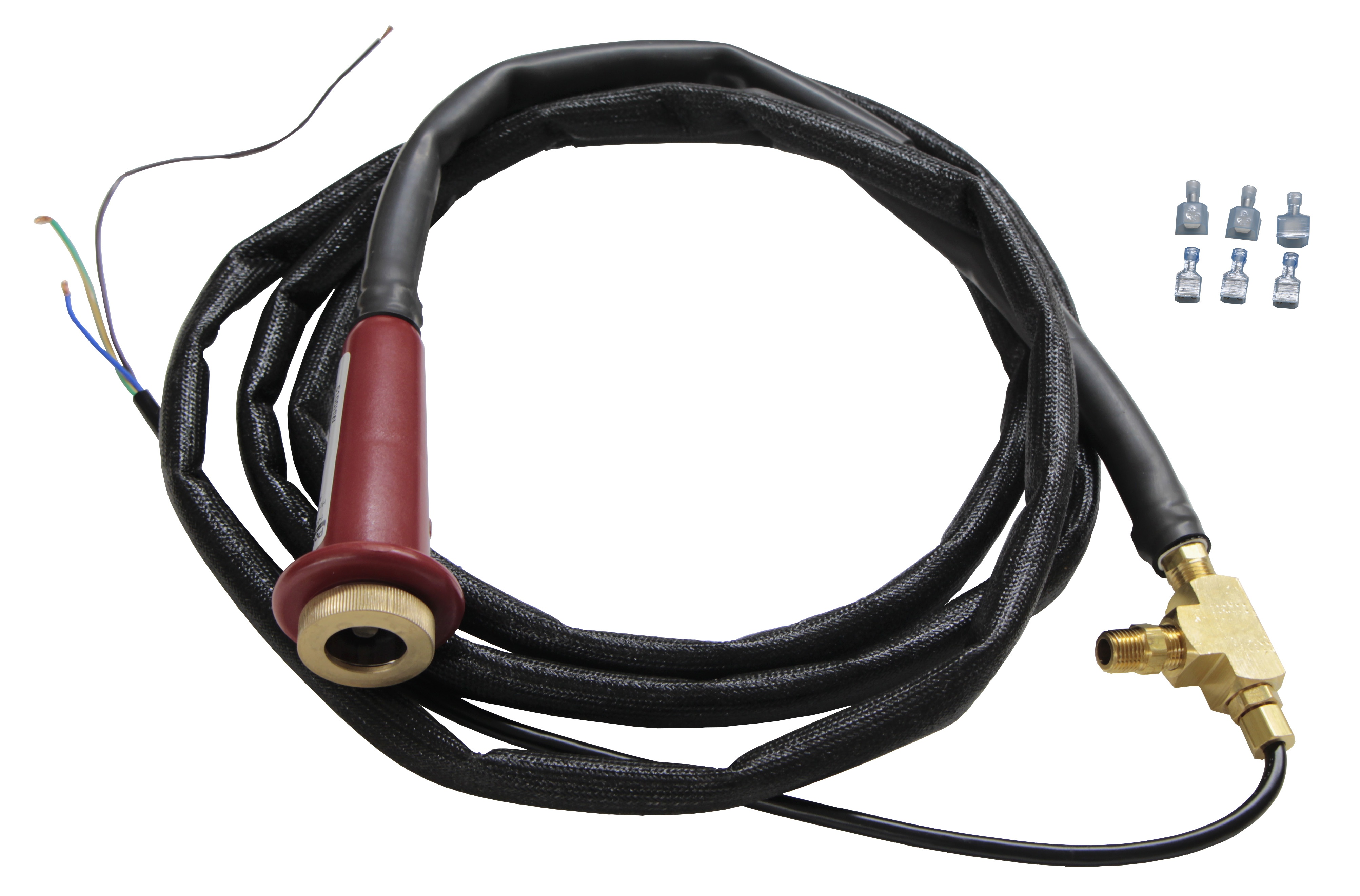

You may have a hose that looks like this braided silicone hose. This hose is now obsolete.
The older braided silicone hose has been replaced by this improved, more durable, melt-proof, silicone hose.
Replacement hose and wiring assembly for the following welders:
| Part Number | Welder Description |
|---|---|
| 6050HA | EZ Weld Hot Air Plastic Welder |
| 6051 | Dual Fuzer Nitrogen Welder |
| 6053 | E-Z Weld 2.0 Hot Air Welder |
| 6056 | Nitrogen Welding System |
If your hot air welder has the brass fitting or gray PVC fitting (images below) then this is the hose and wiring assembly that you need.
If your hot air welder has a "Straight-Through" connector (image below), then you need Part Number 6101.
Instructional Video (Click or tap to expand)

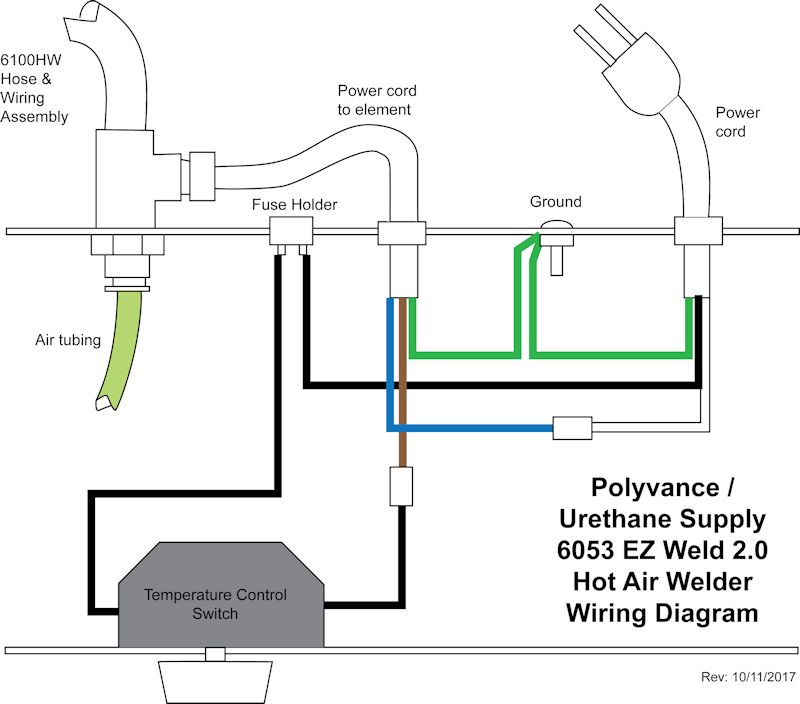

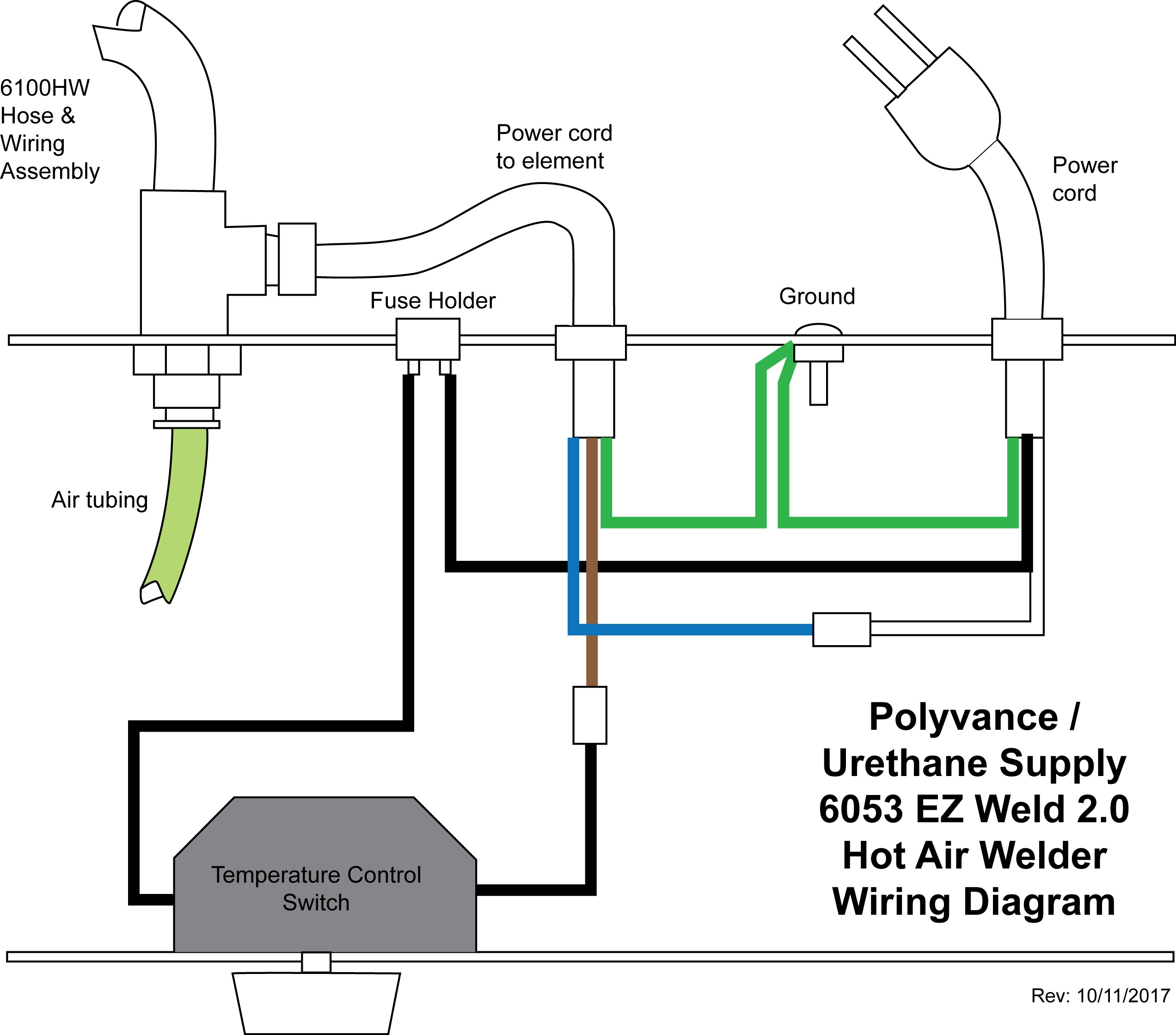

Wiring Diagram
High Resolution Image(s) (opens in a new tab/window)
