Handle & Socket Assembly - red handle
<p>URE6150H POL6150H URA6150H 694687005535 sku 6150H UR6150H POL6150H URT6150H URT-6150H PLY6150H POL 6150H US-6150H PV6150H UPC694687005535 URE-6150H Hot Air Welder Replacement Handle & Socket Assembly PLV6150H PLV-6150H</p>
$97.95
Part No.:6150H
Weight: 0.28 LB
Length: 6.00 IN
Height: 2.50 IN
Width: 3.50 IN
UPC: 694687005535
Accepted Payments:
Visa, MC, American Express, Discover, PayPal
If you left your hot air welder turned on without any air flowing through it, you probably melted the handle. This Handle and Socket Assembly *should* contain everything you need to replace your melted handle.
Assembly instructions are included with the the kit.
This handle and socket assembly is for the following Models
- 6049
- 6049-C
- 6051
- 6053
- 6056
- 6057
- 6057-C
- 6059
- 6059-C
- 6066-CG
- 6071
- 6080
- 6080-CG
- 6085
- 6085-C
- 6095-C

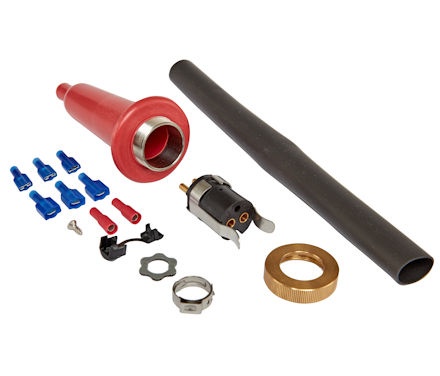

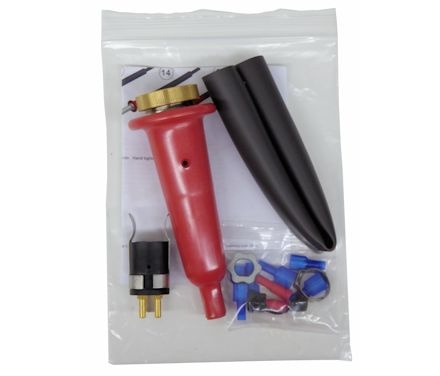

Contents of this kit.
| Part No. | Qty | UOM | Description |
|---|---|---|---|
 6057-21 |
1 | EACH | 18.0-15.5 mm Stainless Pinch Clamp. This holds the hose to the handle. |
 6057-37 |
3 | EACH | 1/4" Male connectors |
 6057-38 |
3 | EACH | 1/4" Female connectors |
 6059-07 |
1 | EACH | Heat shrink tubing |
 6150-01 |
1 | EACH | Red handle with threaded insert. |
 6150-04 |
1 | EACH | 6 x 3/8 SS oval head screw. This is the screw in the side of the handle that holds the socket in place. |
 6150-05 |
1 | EACH | Strain relief jam washer. |
 6150-06 |
1 | EACH | Socket and ground spring assembly. |
 6175-02 |
1 | EACH | Brass nut that holds the barrel to the handle. |
 STRAIN1 |
1 | EACH | Round wire strain relief. |
High Resolution Image(s) (opens in a new tab/window)
URE6150H POL6150H URA6150H 694687005535 sku 6150H UR6150H POL6150H URT6150H URT-6150H PLY6150H POL 6150H US-6150H PV6150H UPC694687005535 URE-6150H Hot Air Welder Replacement Handle & Socket Assembly PLV6150H PLV-6150H
