We help people repair plastic
Weight: 65.00 LB
Length: 38.00 IN
Height: 42.00 IN
Width: 19.00 IN
Also available on Amazon:
Visa, MC, American Express, Discover, PayPal

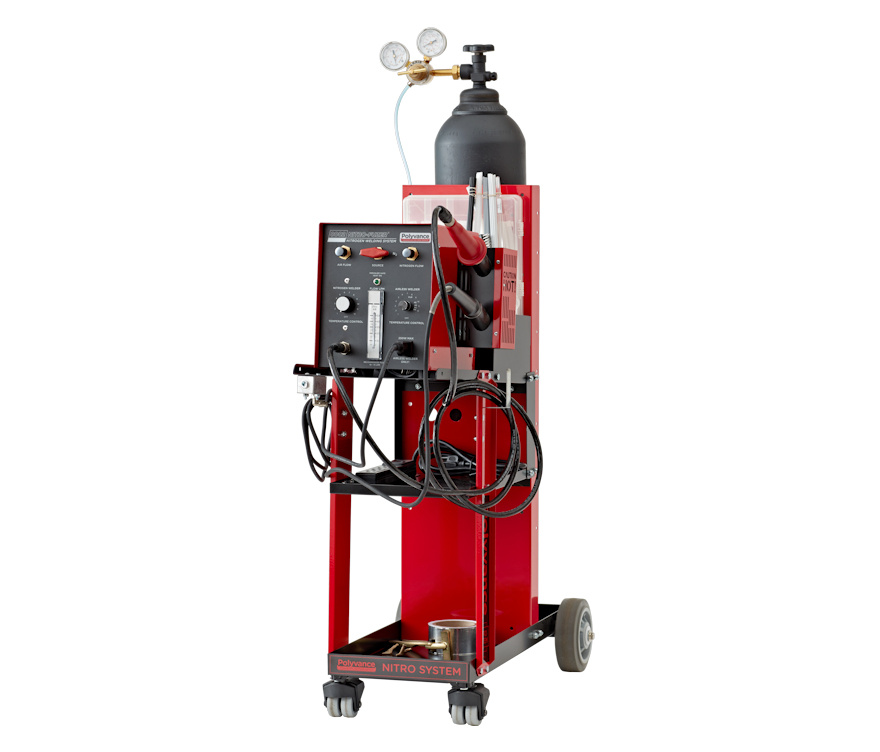

The 8002 Nitro-Fuzer® plastic welding system combines a simplified analog nitrogen welder with a traditional airless plastic welder. By combining these welders into one package, it allows you to make nitrogen welds economically to virtually any automotive plastic.
This Nitro-Fuzer® is designed to be used with compressed air and a nitrogen bottle to make the strongest possible welds. If you want continuous nitrogen without the hassle of changing the nitrogen tank, consider getting the 8003 or 8203 welders as they have nitrogen generators.
Analog Flow Gauge With Low-Flow Cutoff Protection
Unlike some competitive products, the 8002 features precision flow control so the user can match the flow and temperature to substrate types and thicknesses. The flow and temperature can be reduced to a very low point in order to weld thin, fragile substrates, something others cannot do. When welding very thick substrates, the temperature and flow can be increased greatly to allow more heat to be transferred to the weld. The analog flow gauge gives the welder a repeatable reference over how much gas is used in the welding process. To extend heating element lifespan, a low-pressure safety switch is incorporated into the system, shutting off the power to the heating element if the air flow drops below a safe level.
The integrated airless welder is ideal for smoothing out welds, and it is essential for repairing thermoset polyurethane.
In order to reduce the cost of the 8002, the welder and cart will be shipped in two separate boxes. The welder is fully assembled and ready to go, but the cart will have to be assembled. We have detailed instructions in the box, as well as a video, to help you assemble the cart. The Welding Cart Assembly instructions, Setup and Use video, and Quick-Start Guide can be found below. The 8002 is packaged with one welding rod organizer case filled with a selection of welding rods, a hand seamer, and aluminum tape. It is covered by a two-year "bumper-to-bumper" warranty covering all parts except the heating elements and misuse.
Manual Air-to-Nitrogen Switching
|Image||Part Description||More info|
|5003-01 Welding Rod Organizer Case
Keeps your plastic welding rod organized.
Tube welding tip
Flat tear drop welding tip
Standard hot air welding tip
Nitrogen bottle regulator
Stainless steel tip cleaning brush - Use this to clean the tip of the airless welder.
Urethane welding rod, 1/8 in. (3 mm) diameter, 15 feet (9 m), natural
Polypropylene, 1/8 in. (3 mm) diameter, 15 feet (9 m), natural
Polypropylene, 3/8 in. (9.5 mm) X 1/16 in. (1.6 mm), 15 feet (9 m), natural
Polypropylene, 5/8 in. (15.9 mm) X 1/16 in. (1.6 mm), 15 feet (9 m), natural
Polypropylene, 16/64 in. (5 mm) X 1/16 in. (1.6 mm), 15 feet (9 m), natural
Polypropylene corner rod, 1/4 in. (6 mm) X 1/4 in. (6 mm), 15 feet (9 m), natural
ABS, 1/8 in. (3 mm) dia., 15 feet (9 m), white
Polyethylene (LDPE), 1/8 in. (3 mm) dia., 15 feet (9 m), natural
TPO, 1/8 in. (3 mm) dia., 15 feet (9 m), gray
Nylon, 1/8 in. (3 mm) dia., 15 feet (9 m), natural
Polycarbonate, 1/8 in. (3 mm) dia., 4 feet (1.2 m), natural
The calculated amperage draw is 3.7 amps when everything is running full blast. The measured amperage draw is 2.9 amps when everything is running full blast.
The time that a bottle of nitrogen will last depends on the bottle size, the flow, and the time to repair. The image below show the most common size nitrogen bottles.
|Bottle number||Time until empty||Number of repairs|
|1||9 hrs. 26 min.||56|
|2||7 hrs. 40 min.||46|
|3||3 hrs. 46 min.||22|
|4||2 hrs. 31 min.||15|
|5||1 hr. 53 min.||11|
|6||1 hr. 15 min.||7|
High Resolution Image (opens in a new tab/window)
